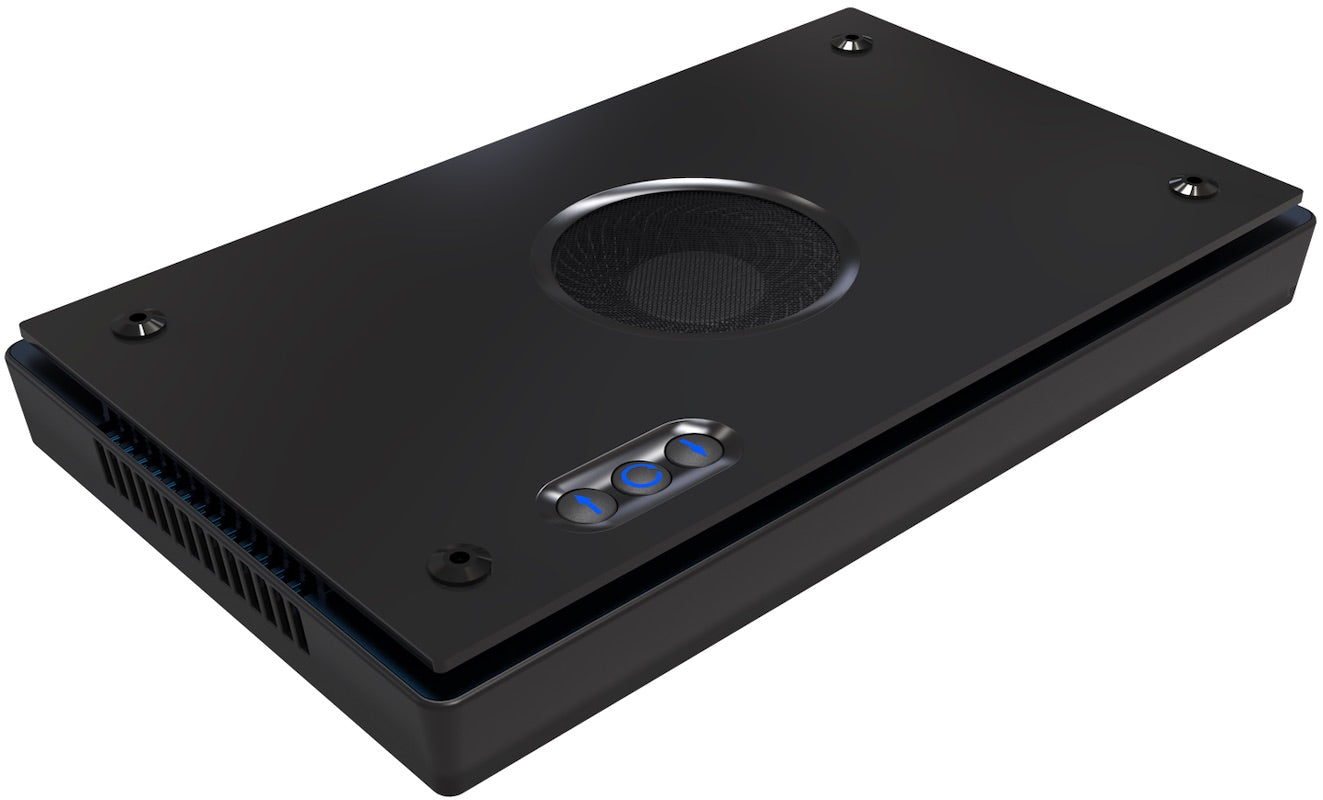

ETM Radion G5

$669.00
Lights
-
+
Ask about this product

Ask a question

The next level of LED lighting.

Uncompromising Performance. The G5 delivers advancements that must be seen to be believed.



ColorSpreadShimmer



Lighting Evolved
Since the introduction of our first Radion LED light, each generation has offered new features and better performance. The Radion G5 represents a giant step forward in lighting in both value and performance, leaving our competitors in the dust.

  • Pro or Blue Spectrum Options
  • Updated HEI Lens
  • Flexible Mounting Options
  • Mobius Control



More Coverage

The lenses on the G5 deliver more usable light area. This is accomplished by spreading light that would normally create an area of high PAR directly under the LED fixture and redirect it to a significantly wider optimal area of intensity for coral health and growth. This will reduce shadowing in the aquarium as well as increase usable space for coral at all depths.



Hemispherical Edge Illumination

Generation 5 includes the most sophisticated lens design available. HEI lenses deliver the light uniformity and color mixing of halide T5 combo without sacrificing the power and efficiency of the LEDs.

How impressive is the new HEI lens design? Just compare the previous generations of Radion® lenses, which utilized the best optical technologies of the time. Observing the respective PAR distribution of the reflector and TIR lenses, it is immediately apparent that HEI Optics offer a significant improvement from the perspective of providing usable coverage.


More Colour

The Radion® G5 features a whole new LED cluster. The rebalancing of proven colors combined with the addition of warm white and violet takes color rendition for your corals to the next level. The reconfiguration of the clusters compliments the all-new HEI lenses to deliver balanced color mixing better than ever before.



Quiet Active Cooling

The G5 heat sink has been designed from the ground up to maximize surface area and allow for superior heat dispersion. Multiple channels provide unrestricted airflow. This effective heat management greatly reduces the need for active cooling, which decreases fan and airflow noise.



PRO / BLUE

PRO VS BLUE, FIND OUT WHICH RADION SUITS YOU.

 G5 Pro

From Aquaculture to the home aquarium, there is a high likelihood that the coral you know and love has been grown or “colored-up” under a generation of Radion Pros.

Powerful. Flexible. Proven.

  • Full Spectrum
  • 10 Channels
  • Radion Pro’s Balanced LED Mix
  • Proven Halide Spectrum and Previous Pro Spectrum
  • Flexible Spectral Output

  G5 Blue

The aquarium light for those who know exactly what they want. The Gen 5 Blue is full-spectrum, but LED selection favors the Blue channels and high output for use with our Corallab AB+ spectrum.

Put all of your power into Blue.

  • Full Spectrum
  • 10 Channels
  • Blue dominant LED Mix
  • Proven CoralLab AB+ Spectrum
  • Spectrum selection guarantees simple results



 Specifications

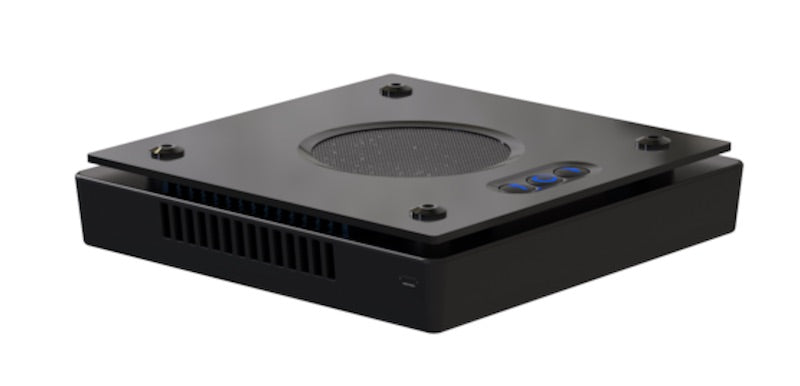

XR15 G5 BLUE

Perfect for aquariums 24-30 inches wide and deep. Put all of your power into Blue.

XR30 G5 BLUE

Full spectrum with LED selection favoring blue channels. Put all of your power into Blue.

XR15 G5 PRO

Perfect for tanks 24-30 inches wide and deep. Comprehensive spectrum and performance.

 XR30 G5 PRO

The industry standard for high output. Comprehensive spectrum and performance.

Dimensions
Length 7in.(18cm)
Width 7in.(18cm)
Height 1.5in.(3.9cm)
Weight 3.5lbs.(1587g)

Power Specifications
Power Consumption 100W
Universal Input Range 100-240VAC, 50/60Hz
Peak Inrush Current 1.3A

LEDs

3 Cool White
20 Royal Blue
12 Blue
1 Photo Red
2 Lime
2 UV(405nm)
2 UV(415nm)
3 Violet
5 Cyan
2 Lunar Light

Dimensions
Length 11.8in.(30cm)
Width 7in.(18cm)
Height 1.5in.(3.9cm)
Weight 4.5lbs.(2041g)

Power Specifications
Power Consumption 205W
Universal Input Range 100-240VAC, 50/60Hz
Peak Inrush Current 4.0A

LEDs

6 Cool White
40 Royal Blue
24 Blue
2 Photo Red
4 Lime
4 UV(405nm)
4 UV(415nm)
6 Violet
10 Cyan
2 Lunar Light

Dimensions
Length 7in.(18cm)
Width 7in.(18cm)
Height 1.5in.(3.9cm)
Weight 3.5lbs.(1587g)

Power Specifications
Power Consumption 105W
Universal Input Range 100-240VAC, 50/60Hz
Peak Inrush Current 1.3A

LEDs

12 Cool White
16 Royal Blue
8 Blue
2 Photo Red
3 Green
2 UV(405nm)
2 UV(415nm)
2 Violet
3 Warm White
2 Lunar Light

Dimensions
Length 11.8in.(30cm)
Width 7in.(18cm)
Height 1.5in.(3.9cm)
Weight 4.5lbs.(2041g)

Power Specifications
Power Consumption 215W
Universal Input Range 100-240VAC, 50/60Hz
Peak Inrush Current 4.0A

LEDs

24 Cool White
32 Royal Blue
16 Blue
4 Photo Red
6 Green
4 UV(415)
4 UV(405)
4 Violet
6 Warm White
2 Lunar Light



An Ever Expanding Ecosystem

You’ve invested in your ecosystem with the smartest and most capable EcoTech® equipment. Now unlock the true potential of this system with nothing more than an app on your smart device.

LEARN MORE ...



Mounting options (Optional)

1. Multi-Light RMS

The Multi-Light RMS offers a customizable multi-light mount solution for Radion XR30 and Radion XR15 lights. The Multi-Light RMS system features:
  • Built-in cable management
  • Compatibility with rimmed, rimless and euro-braced tanks
  • Rigid yet lightweight construction
  • Anodized aluminum finish
  • Slide mounts for horizontal and rotational adjustment
  • Optimal mounting for Radions at approximately 7 inches (18 cm) above the edge of the tank



2. Single Arm RMS

These two specialized kits are designed for XR15 and XR30 model Radions. Each kit contains everything needed to mount a Radion light on almost any standard or rimless tank.

Each kit contains multiple sliding rails and a rotatable x-bracket, allowing you to easily position your Radion precisely where you need it.




Radion Diffuser (Optional)

Features
  • Engineered diffuser material for improved color mixing and caustics
  • Quick and easy installation
  • Magnetically attached lens for easy removal and cleaning
  • Minimal reduction in PAR output
  • G5 Diffusers custom-designed to fit G5 models only


How It Works

The Radion® diffuser utilizes an engineered diffuser material with an optimized airspace, the result is enhanced color mixing and more uniform caustics. Working with the existing optics equipped on the Radion® fixtures, a diffuser offers a more pleasing light appearance with only a minimal reduction in PAR.

LEARN MORE ...
