Waterbox Lagoon

$2,299.00
Aquariums
-
+
Ask about this product

Ask a question

Introduction

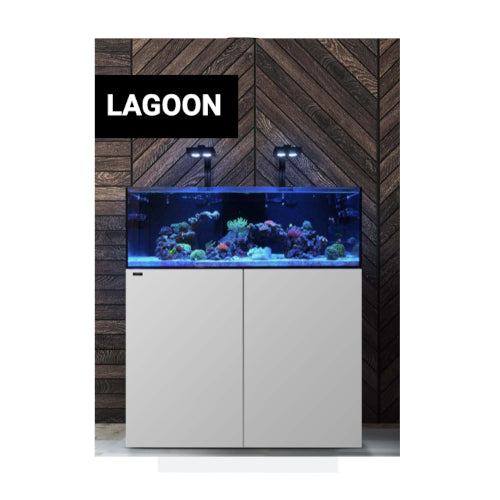

The Waterbox LAGOON systems are an industry first. The LAGOON series provides advanced hobbyists a way create the ultimate shallow reef aquarium. The LAGOON height is 16” compared to the typical 21-24”.

Lagoon 90 Lagoon 120 Lagoon 150 Lagoon 180

Interior

Interior

Interior

Interior

Sump Filtration

Sump Filtration

Sump Filtration

Sump Filtration



 FEATURES

 1. Outstanding Overflow Design

Full Glass Overflow

Overflow boxes are constructed entirely of glass with water-etched weir teeth.


Dual Adjustable Return Nozzles

Each side of the glass overflow box features adjustable return nozzles for precise water agitation.



Glass Overflow Lid

Each Waterbox has an overflow cover with unique branding.


2. Unique Height of 16"

Overflow boxes are constructed entirely of glass with water-etched weir teeth.





3. Plumbing Simplified

Waterbox engineers have designed the LAGOON with a ready to assemble plumbing kit that provides easy installation without any gluing required.



Quick Connect Assembly
Assembly is quick and easy with no gluing required.





Precision Gate Valve
Controls the flow through the drains, ensuring quiet operation.





Safety Drain
Diverts water into the filtration compartment preventing an overflow, in the event of a clog.





Dual-Manifold
Additional valves available for optional equipment.

*Available on the LAGOON 150 and LAGOON 180



Flexible Return Line
Accommodates your choice of return pump by using a flexible hose.





4. Reef Ready Sump System

The LAGOON system shines above the rest with our thoughtfully designed, sized and placed sump system.

5. Stability and Longevity

Waterbox furniture is designed to elevate your living spaces with our first in class cabinetry and finishes.



Soft-Close Doors
PVC coated hinges with soft close doors.



Leveling Feet
Leveling feet to provide long-lasting support and stability.

Push-Open Doors
Recessed push-open hardware.









No Video

 Lagoon 90Lagoon 120Lagoon 150Lagoon 180
Lights

PLUS HD:
(2) AI HYDRA 32HD
(2) AI HMS



OR



PLUS XR:
(2) RADION XR15 G5 Blue
(2) RADION RMS

PLUS HD:
(2) AI HYDRA 32HD
(2) AI HMS



OR



PLUS XR:
(2) RADION XR15 G5 Blue
(2) RADION RMS

PLUS HD:
(3) AI HYDRA 32HD
(3) AI HMS



OR



PLUS XR:
(3) RADION XR30 G5 Blue
(3) RADION RMS

PLUS HD:
(4) AI HYDRA 32HD
(4) AI HMS



OR



PLUS XR:
(4) RADION XR30 G5 Blue
(4) RADION RMS

Return Pumps(1) ETM Vetra S2(1) ETM Vetra S2(1) ETM Vetra M2(1) ETM Vetra M2
Skimmer(1) Nyos 120(1) Nyos 160(1) Nyos 160(1) Nyos 160
Auto Top-off(1) D-D H2O ATO(1) D-D H2O ATO(1) D-D H2O ATO(1) D-D H2O ATO







DescriptionLagoon 90Lagoon 120Lagoon 150Lagoon 180
Display TankDimensions900 x 600 x 410mm1200 x 600 x 410mm1536 x 643 x 410mm1836 x 643 x 410mm
Glass Thickness10mm10mm12mm12mm
Water Height395mm395mm395mm395mm
Aquarium Volume204 L274 L372 L446 L
SumpSump Dimensions720 x 450 x 380mm720 x 450 x 380mm820 x 485 x 380mm820 x 485 x 380mm
Sump Volume116 L116 L140 L140 L
Refugium--YesYes
Glass Thickness6mm6mm8mm8mm
RO Reservoir17 L17 L--
Skimmer Chamber 330 x 438mm330 x 438mm397 x 469mm397 x 469mm
Pump Chamber240 x 200mm240 x 200mm469 x 158mm469 x 158mm
ATO TankATO Dimensions-

-

350 x 361 x 350mm350 x 361 x 350mm
ATO Volume--41 L41 L
Glass Thickness--5mm5mm
PlumbingMain DrainDN25DN25DN32DN32
Emergency OverflowDN25DN25DN32DN32
Pump ReturnDN20DN20DN25DN25
NozzlesDN15 x 2DN15 x 2DN15 x 2DN15 x 2
Filter Socks105mm105mm180mm180mm
CabinetDimensions900 x 600 x 900mm1200 x 600 x 900mm1536 x 643 x 900mm1836 x 643 x 900mm
Material18mm solid plywood
Paint (side & front)PU Painting
SystemHeight with Cabinet1310mm1310mm1310mm1310mm
 Total Volume320 L390 L554 L628 L
