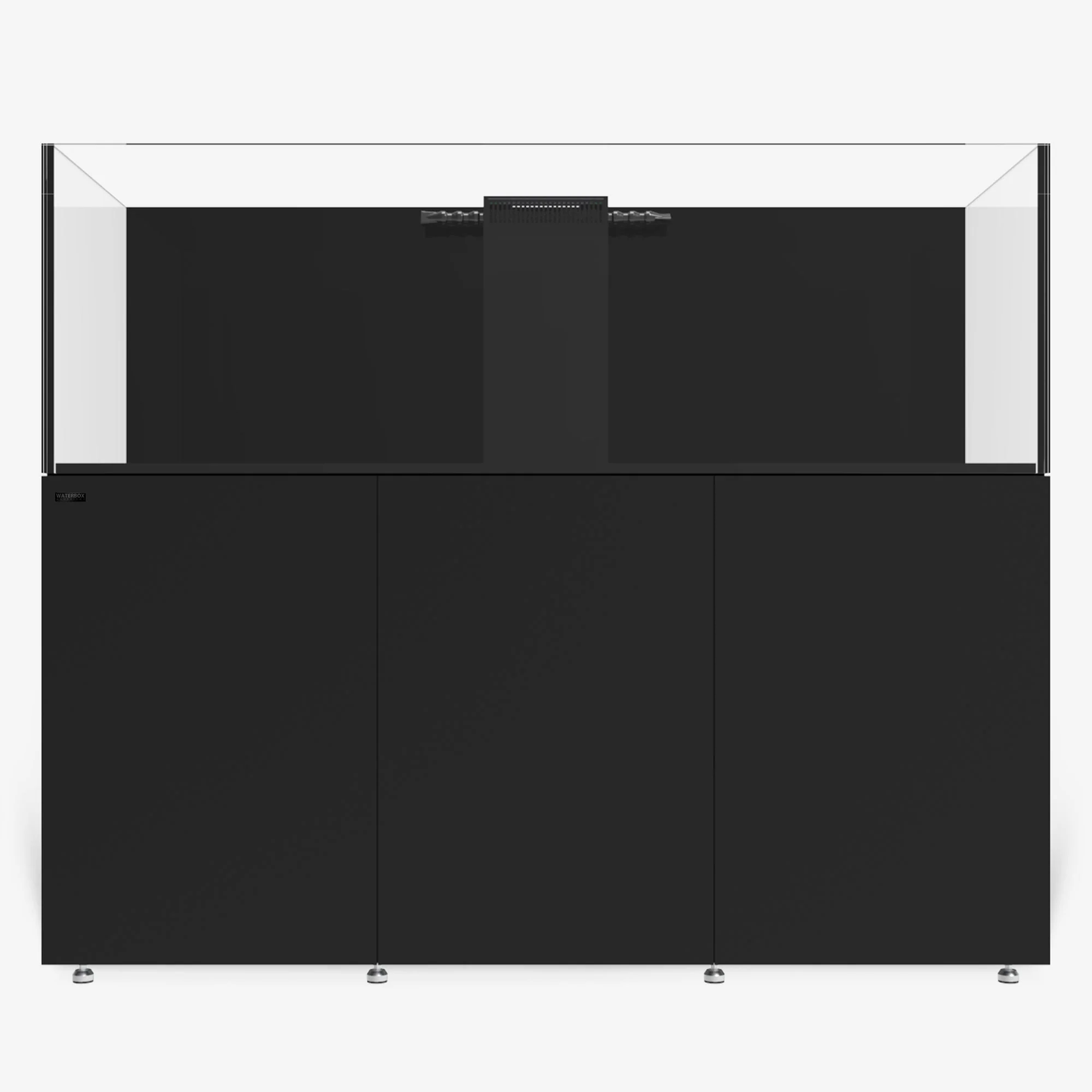

Waterbox Infinia Reef Gen2

$2,549.00
Aquariums
-
+
Ask about this product

Ask a question

INFINIA REEF

PRODUCT MODEL INFINIA
REEF 150.4
INFINIA
REEF 190.5
INFINIA
REEF 230.6
System Height with Cabinet 1,477mm/58.2" 1,502mm/59.1" 1,527mm/60.1"
Total Volume with ATO 577 L/152.5 gals 747 L/197.4 gals 875 L/231.2 gals
Estimated Weight (Dry) 189kg (416 lbs) 280kg (617 lbs) 363kg (800 lbs)
Display
Tank
Tank Dimensions 1,223 x 643 x 550mm 1,536 x 643 x 575mm 1,836 x 643 x 600mm
48.2" × 25.3" × 21.7" 60.5" × 25.3" × 22.6" 72.3" × 25.3" × 23.6"
Glass Thickness 12mm (1/2") 15mm (3/5″) 19mm (3/4")
Aquarium Volume 399 L/105.5 gals 517 L/136.6 gals 632 L/167 gals
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 864 x 475 x 380mm 1,067 x 475 x 380mm 1,143 x 475 x 380mm
34" × 18.7" × 15" 42" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 145 L/38.3 gals 179 L/47.4 gals 192 L/50.8 gals
Glass Thickness 8mm (5/16")
Refugium Chamer
(Max Int. Dimensions)
180 x 400mm 250 x 400mm 300 x 400mm
7.1" × 15.8" 9.8" × 15.8" 11.8" × 15.8"
Refugium Chamer
(Min Int. Dimensions)
140 x 400mm 200 x 400mm 230 x 400mm
5.5" × 15.8" 7.9" × 15.8" 9.1" × 15.8"
Skimmer Chamber
(Int. DIM, w/o Refugium)
442 x 400mm 600 x 400mm 676 x 400mm
17.4" × 15.8" 23.6" × 15.8" 26.6" × 15.8"
Skimmer Chamber
(Int. DIM, with Min Refugium)
297 x 400mm 395 x 400mm 441 x 400mm
11.7" × 15.8" 15.6" × 15.8" 17.4" × 15.8"
Skimmer Chamber
(Int. DIM, with Max Refugium)
257 x 400mm 345 x 400mm 371 x 400mm
10.1" × 15.8" 13.6" × 15.8" 14.6" × 15.8"
Pump Chamber
(Int. Dimensions)
135x 400mm 180 x 400mm 180 x 400mm
5.3" × 15.8" 7.1" × 15.8" 7.1" × 15.8"
Filter Sock
Chamber Dimensions
215 x 382mm 215 x 382mm 215 x 382mm
8.5" x 15" 8.5" x 15" 8.5" x 15"
ATO
Tank
ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8" × 18.7" × 15" 12" × 18.7" × 15"
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN32 (40mm/1-1/2")
Emergency Overflow DN32 (40mm/1-1/2")
Pump Return DN25 (32mm/1-1/4")
Nozzle(s) 2 x DN20 (25mm/1")
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" MESH
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2" × 25.3" × 36.5" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1,093 x 572 x 848mm 1,406 x 541 x 848mm 1,706 x 541 x 848mm
43" × 22.5" × 33.4" 55.4" × 21.3" × 33.4" 67.2" × 21.3" × 33.4"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels 18mm Plywood, Water-resistant PU coated
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Color WHT-White, BLK-Black

* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
