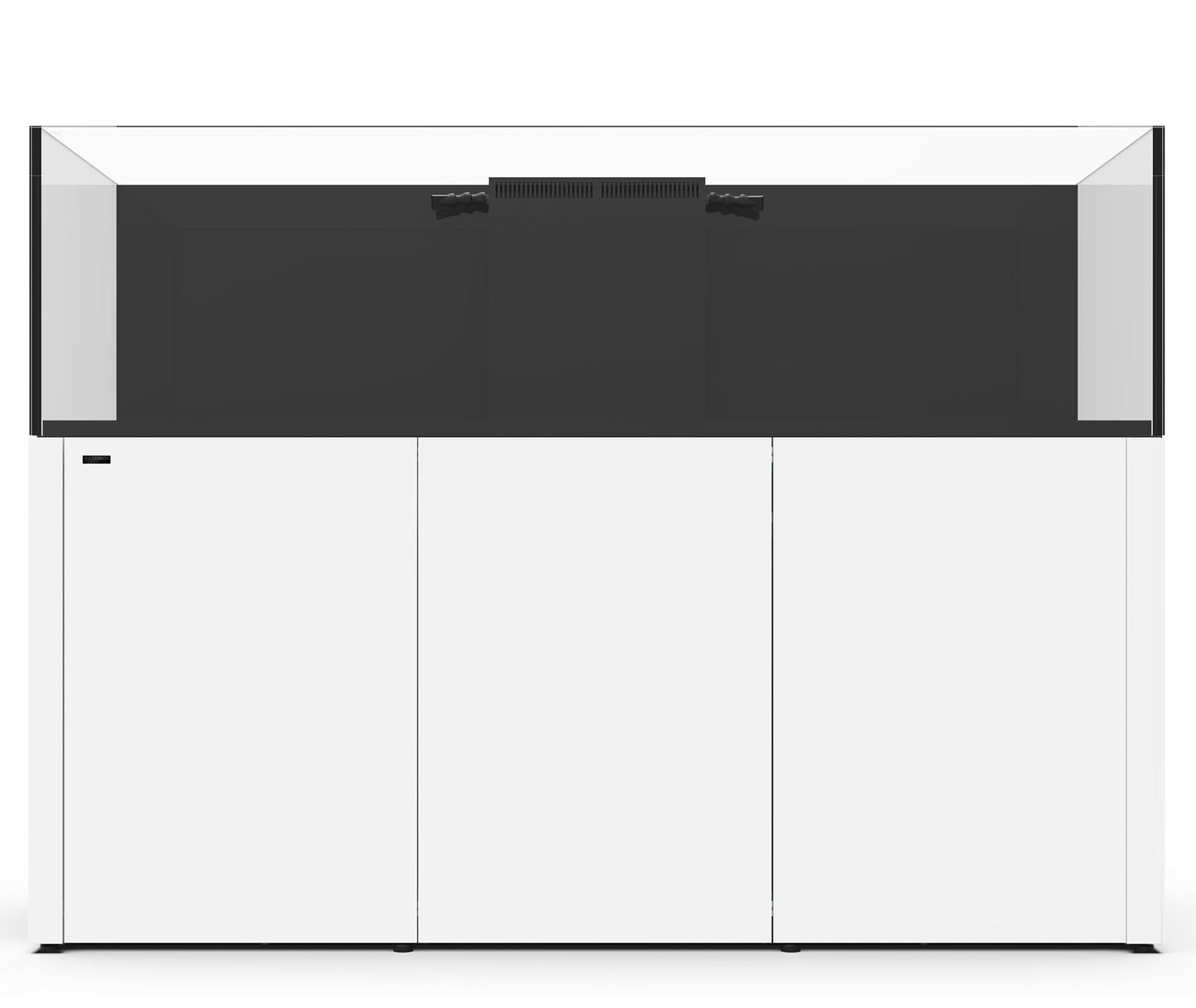

Waterbox Reef LX

$5,999.00
Aquariums
Ask about this product

Ask a question

More Gallons, More Potential

The REEF LX total system volume begins at 719L and goes up to 1209L.

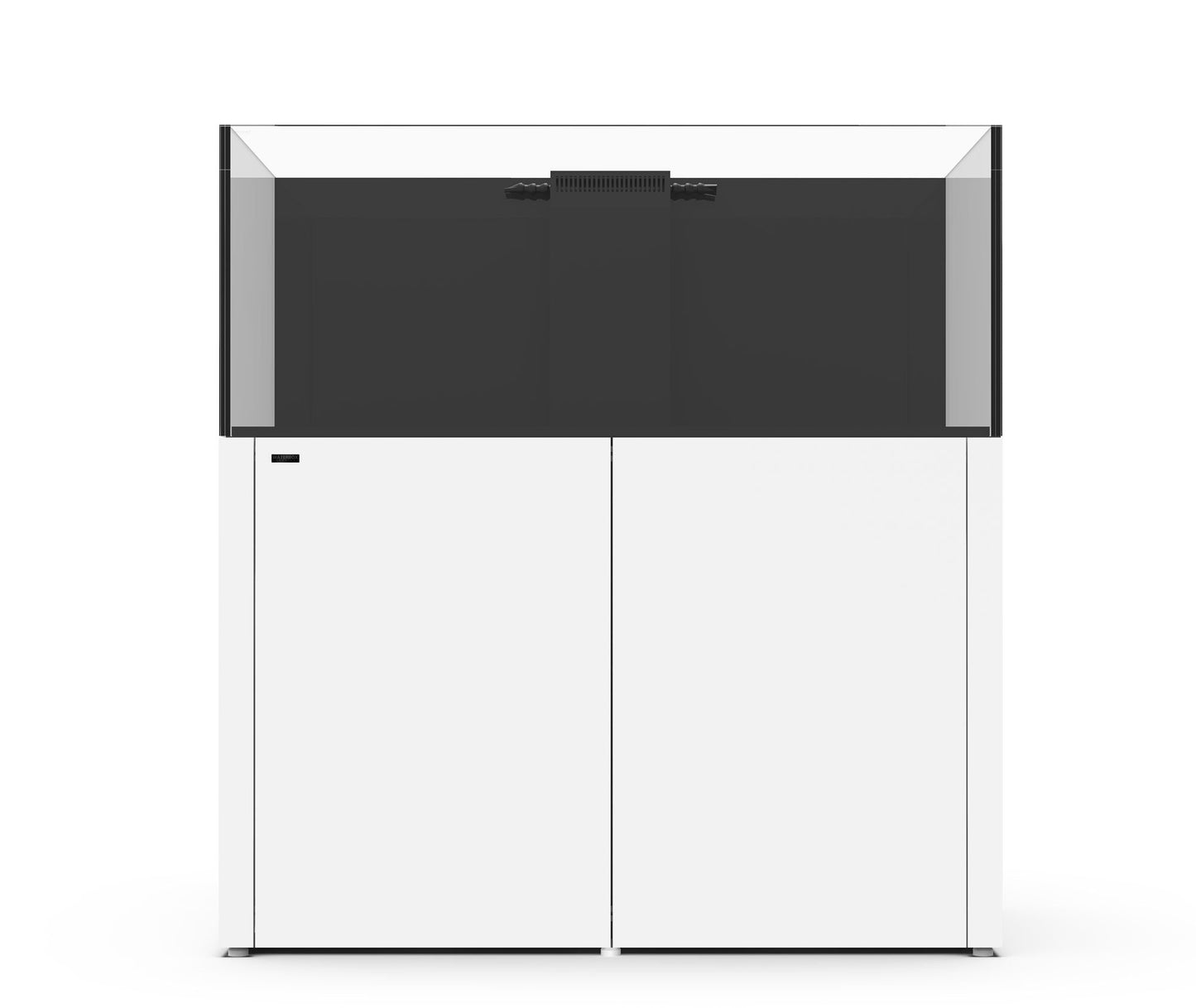

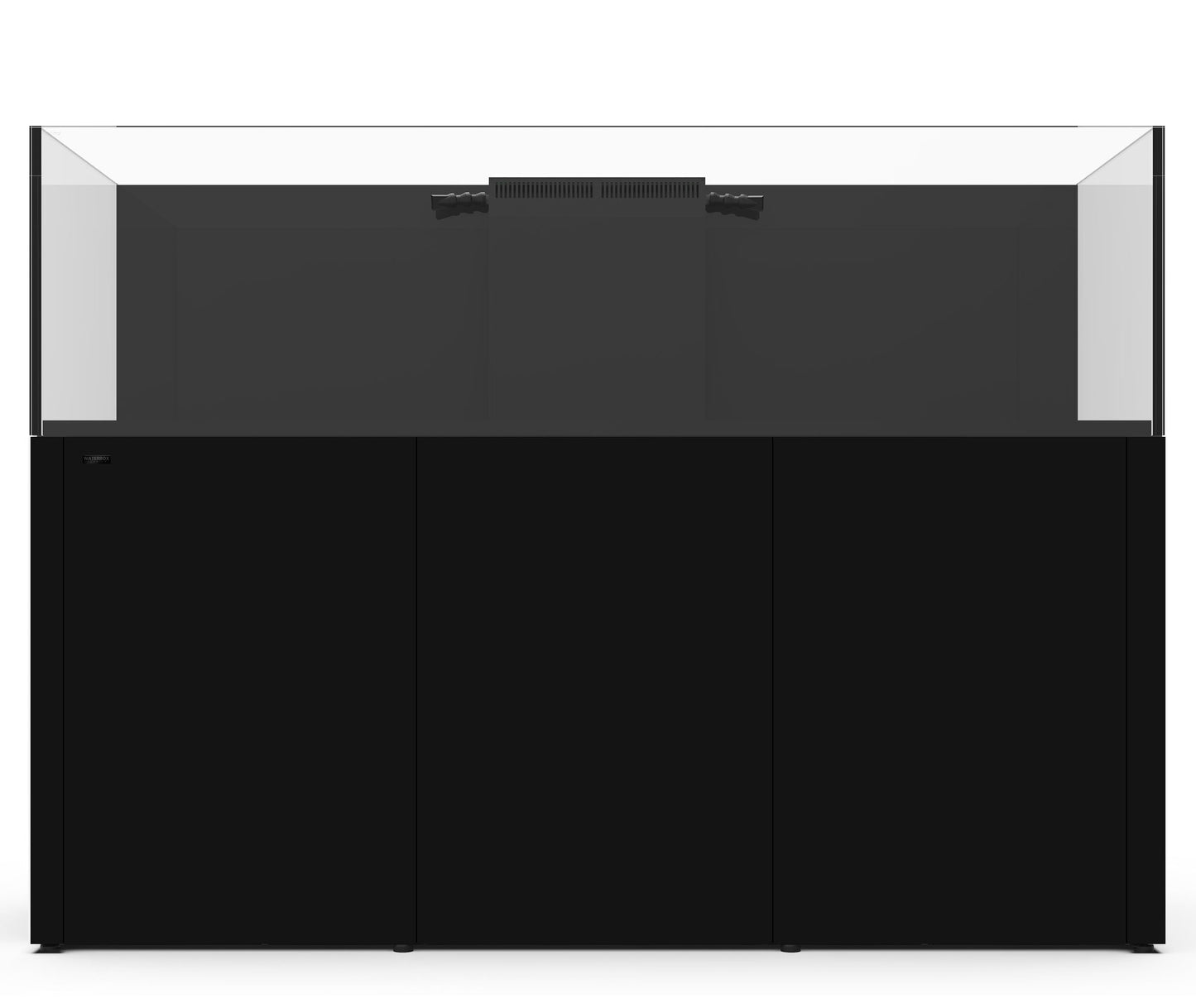

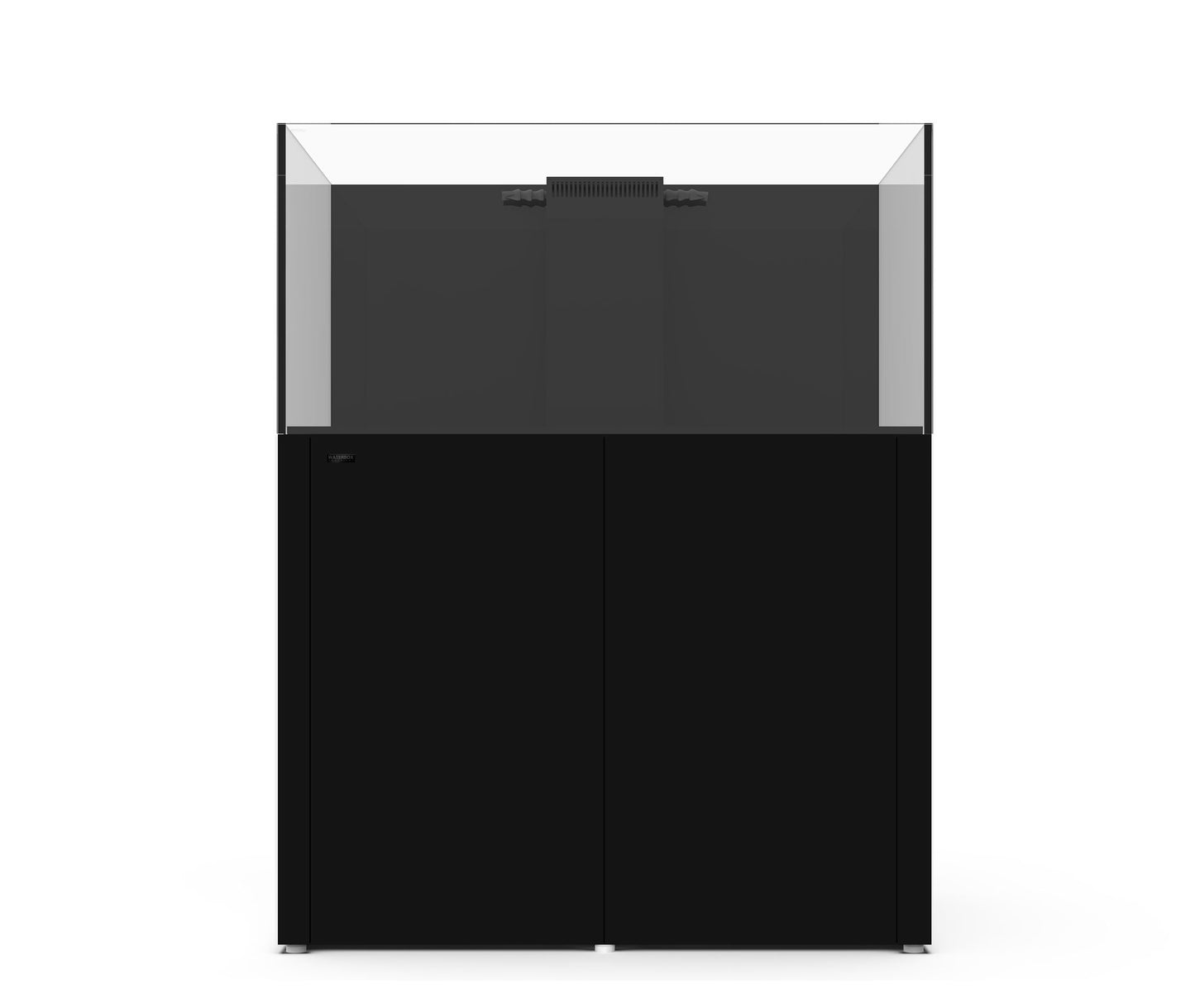

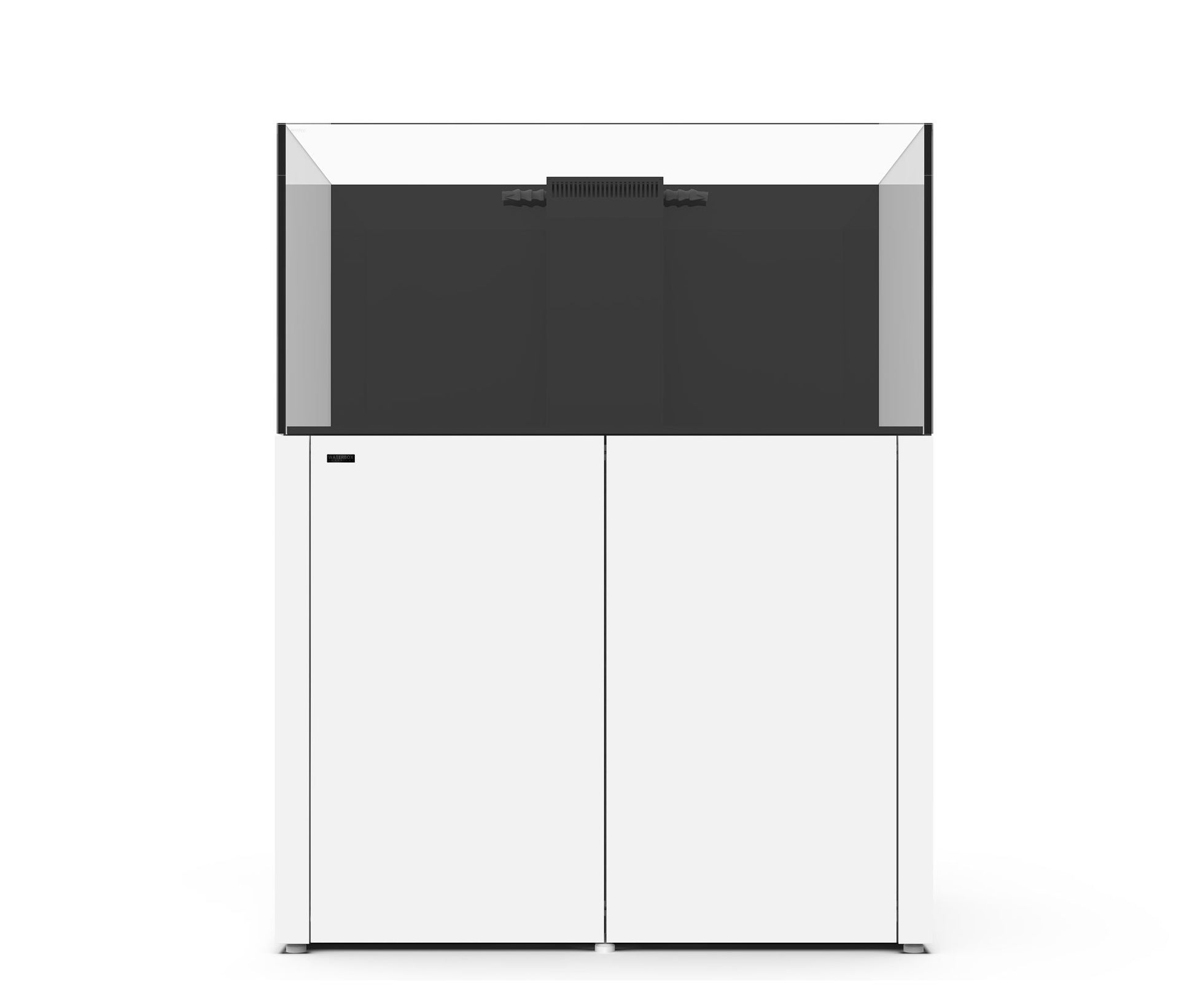

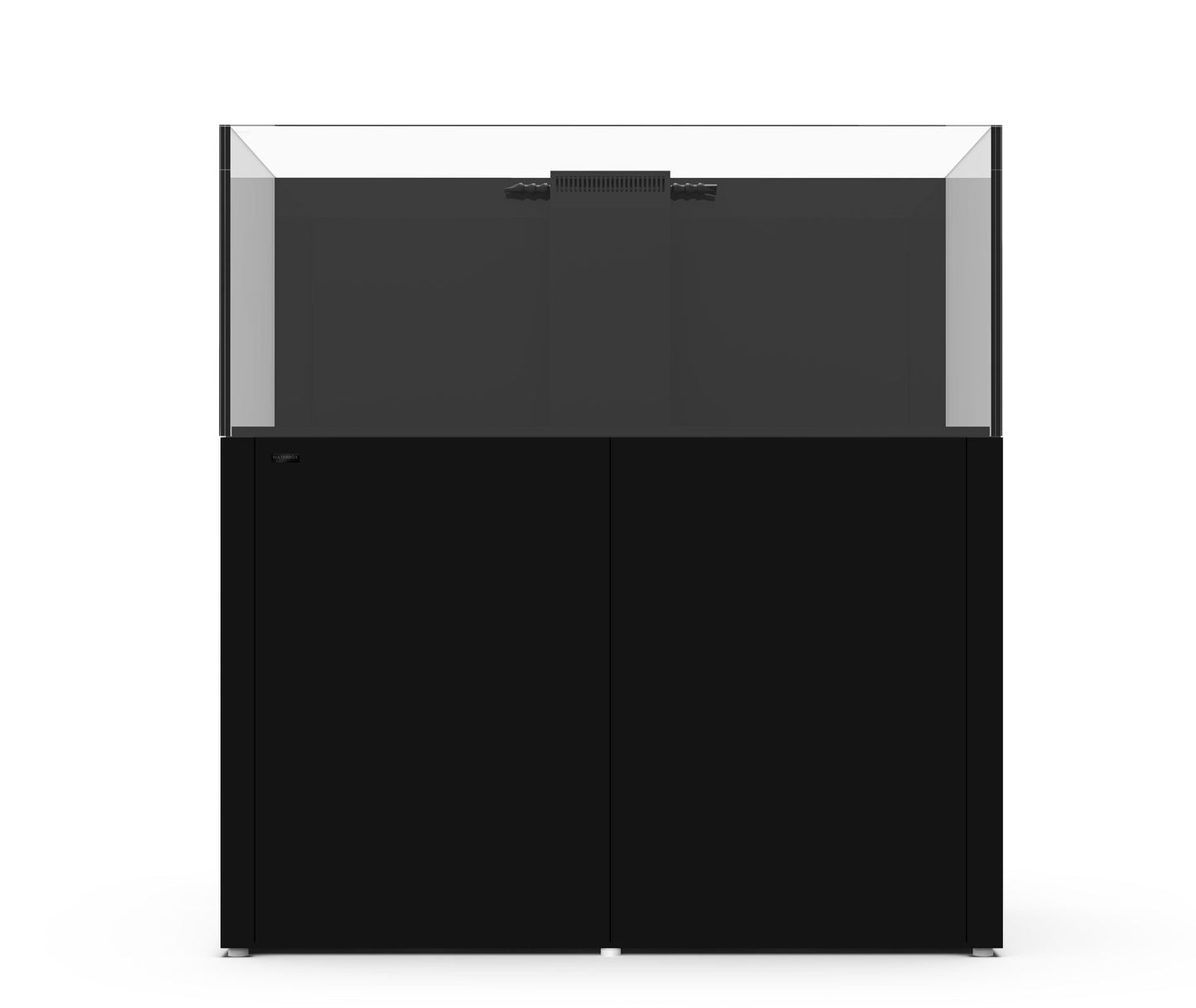

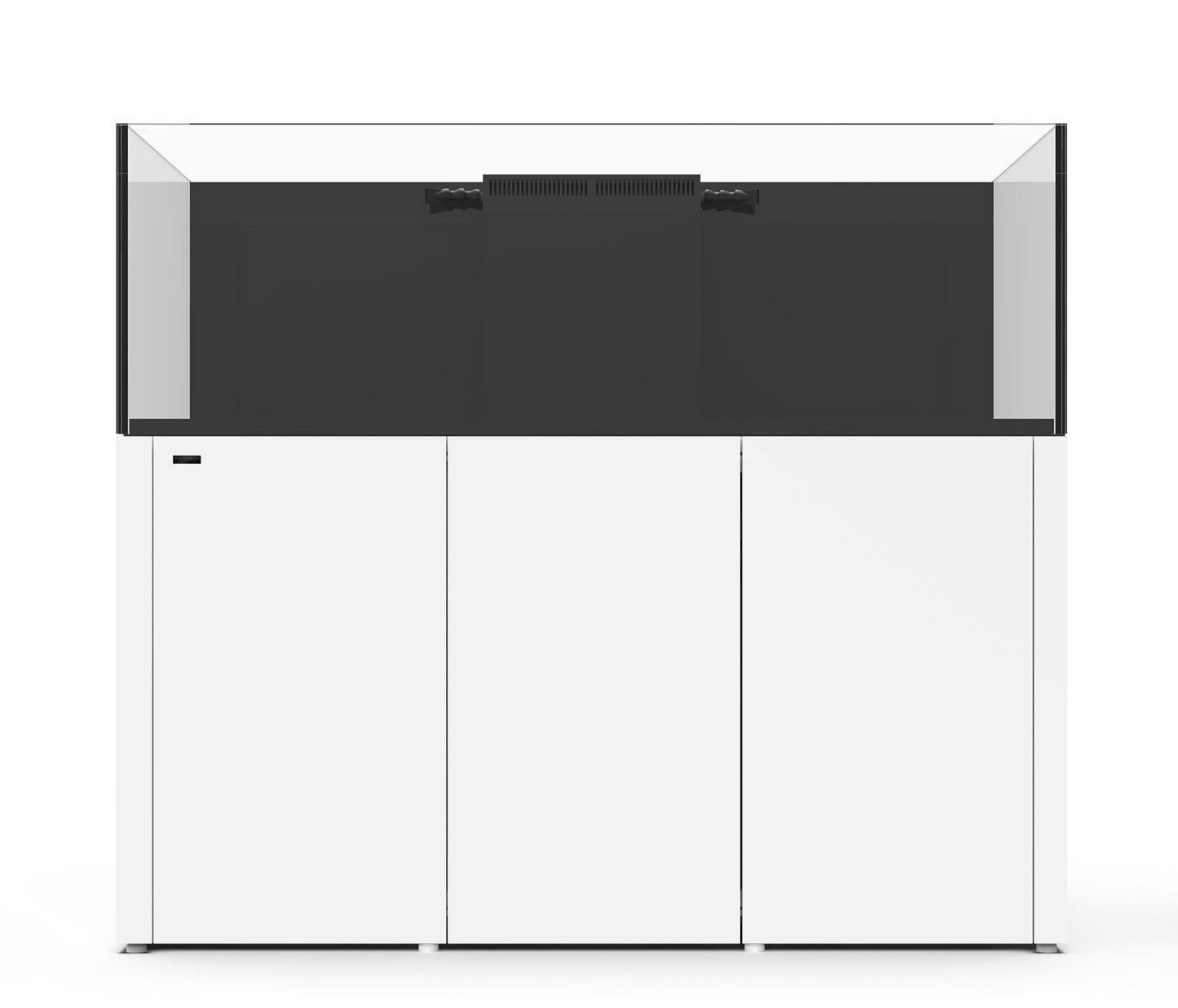

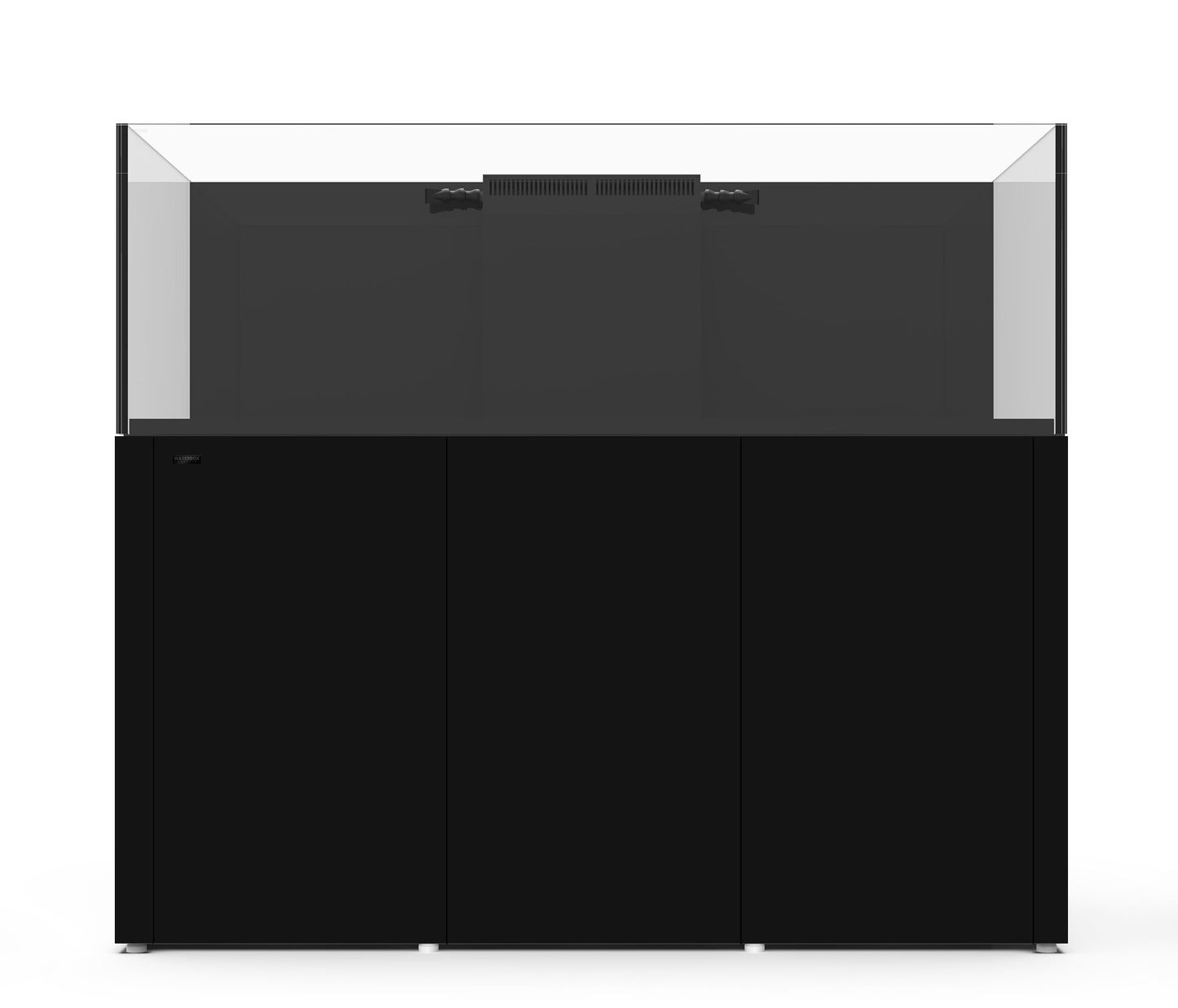

Reef LX 120 Reef LX 150 Reef LX 180 Reef LX 220

Interior

Interior

Interior

Interior

Sump Filtration

Sump Filtration

Sump Filtration

Sump Filtration



 FEATURES

 1. Built For Strength & Stability

MARINESHIELD™ Cabinets

The Waterbox MARINESHIELD™ series is our most advanced line of cabinetry yet.


Waterbox ALU Cabinetry

This cabinetry utilizes fully waterproof WPC wood composite materials and comes fully assembled. Available in White or Black.

Ventilation

Proper airflow is critical in large aquarium system cabinetry. We have thoughtfully  added ventilation grills the back panel of the Waterbox ALU cabinet to decrease humidity and keep your cabinet dry.

Control Center

Each Waterbox ALU cabinet includes a control center, strategically designed to accommodate all major controllers, drivers and dosers. The control center is flexible and can be installed on either side of the cabinet.

Powder Coated Aluminum Framing

Designed for maximum rigidity, the Waterbox ALU frame supports 50% more than traditional aquarium cabinetry.

Leveling Feet

Eccentric leveling feet create the most stable foundation for these oversized aquarium systems.


2. Ready to Assemble Plumbing

Precision Gate Valve
Maximizes your control of the flow to ensure whisper-quiet operation.

Dual Safety Drain
Keeps your aquarium flowing in the event of a main drain clog.

Check Valve
Preinstalled to prevent backflow and sump overflows.

Dual Manifold System
Connects seamlessly with your desired filtration and reactors.








3. Filtration System

 Refugium

Create the ultimate biotope with our optional refugium section in all REEF LX models. *Refugium plate is removable.

External ATO

The included ATO reservoir is designed for use with an electronic auto top-off , keeping your system stable and topped up.

 Filter Socks

Filter socks are critical in removing unwanted organics and detritus, while clarifying and polishing the water.





No Video

 Reef LX 120Reef LX 150Reef LX 180Reef LX 220
LightsEcoTech Marine Radion XR30 Blue or Pro (2)
EcoTech Marine RMS Arms (2)
EcoTech Marine Radion XR30 Blue or Pro (2)
EcoTech Marine RMS Arms (2)
EcoTech Marine Radion XR30 Blue or Pro (3)
EcoTech Marine RMS Arms (3)
EcoTech Marine Radion XR30 Blue or Pro (3)
EcoTech Marine RMS Arms (3)
Return Pumps
Skimmer
Auto Top-off(1) D-D H2O ATO(1) D-D H2O ATO(1) D-D H2O ATO(1) D-D H2O ATO







DescriptionREEF LX 120REEF LX 150REEF LX 180REEF LX 220
Display TankDimensions1268 x 750 x 600mm1510 x 750 x 600mm1836 x 750 x 600mm2200 x 750 x 600mm
Glass Thickness15mm19mm19mm19mm
Bottom Thickness19mm19mmDouble 15mmDouble 15mm
Water Height585mm585mm585mm585mm
Aquarium Volume518 L609 L730 L877 L
SumpSump Dimensions750 x 580 x 400mm920 x 580 x 400mm1000 x 580 x 400mm1200 x 580 x 400mm
Sump Volume126 L200 L218 L262 L
Glass Thickness8mm8mm8mm8mm
Refugium Chamber

Min Dimensions

220 x 335mm



Max Dimensions

220 x 335mm

Min Dimensions

145 x 488mm



Max Dimensions

250 x 488mm

Min Dimensions

195 x 488mm



Max Dimensions

300 x 488mm

Min Dimensions

250 x 488mm



Max Dimensions

355 x 488mm

Skimmer Chamber

W/o Refugium

335 x 488mm



With Min Refugium

263 x 335mm



With Max Refugium

263 x 335mm

W/o Refugium

475 x 488mm



With Min Refugium

325 x 488mm



With Max Refugium

219 x 488mm

W/o Refugium

555 x 488mm



With Min Refugium

355 x 488mm



With Max Refugium

249 x 488mm

W/o Refugium

755 x 488mm



With Min Refugium

500 x 488mm



With Max Refugium

394 x 488mm

Pump Chamber150 x 564mm180 x 564mm180 x 564mm180 x 564mm
ATO TankATO Dimensions200 x 580 x 370mm250 x 580 x 370mm

350 x 580 x 370mm350 x 580 x 370mm
ATO Volume39 L49 L70L70 L
Glass Thickness6mm6mm6mm6mm
PlumbingMain DrainDN25DN25DN32DN32
Emergency OverflowDN32DN32DN25 X 2DN25 X 2
Pump ReturnDN25DN25DN25DN25
NozzlesDN20 x 2DN20 x 2DN20 x 2DN20 x 2
Filter Socks180mm X 2180mm X 2180mm X 2180mm X 2
CabinetDimensions1268 x 750 x 1000mm1510 x 750 x 1000mm1836 x 750 x 1000mm1200 x 750 x 1000mm
Material18mm Waterbox ALU fully water-proof cabinet panels
Eccentric wheel Leveling Feet
CE Aluminum Extrusion Frame with anti-rust connectors
Paint (side & front)PU Painting (side & front), Powder coated for aluminum profile.
SystemHeight with Cabinet1600mm1600mm1600mm1600mm
 Total Volume719 L858 L1017 L1209 L
