Waterbox

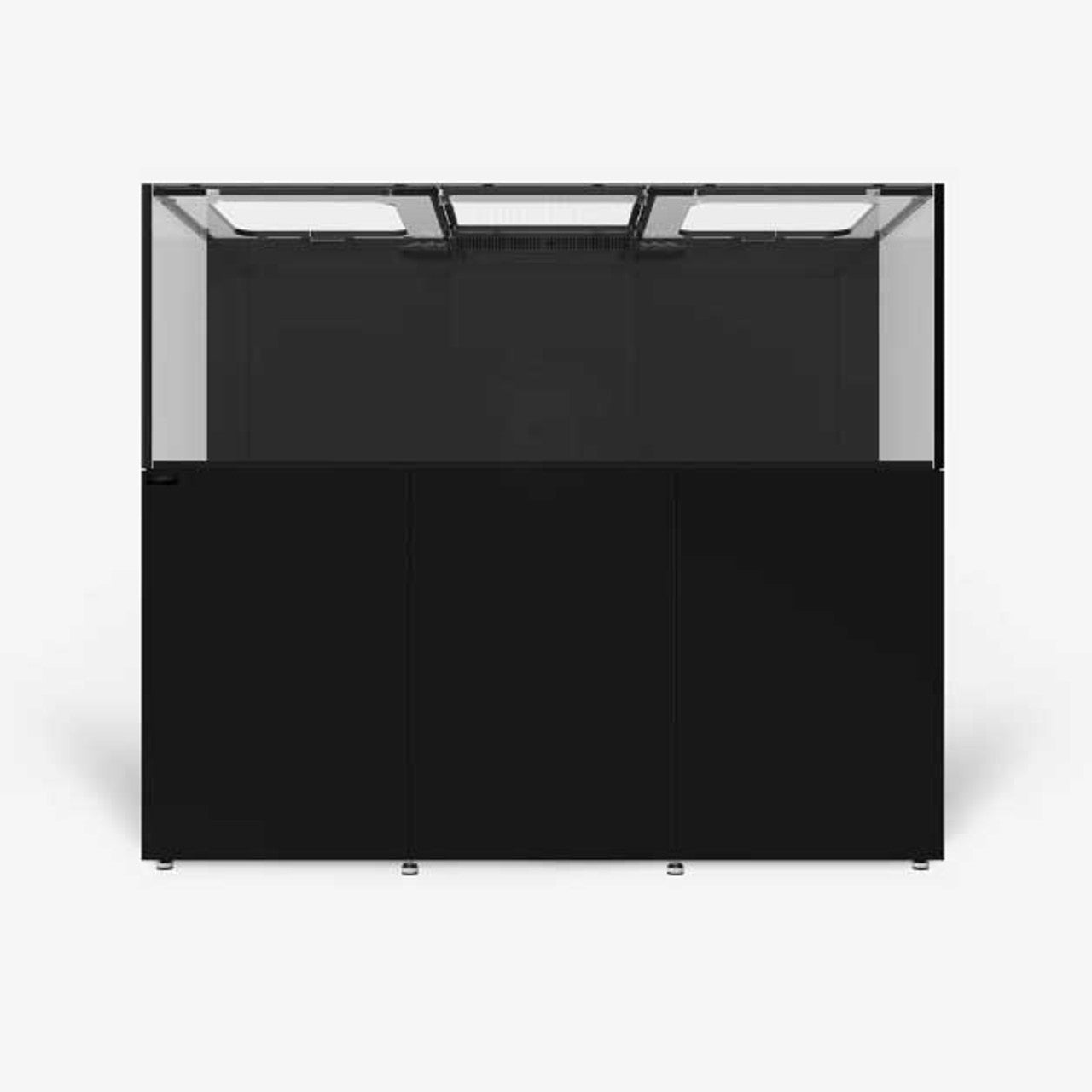

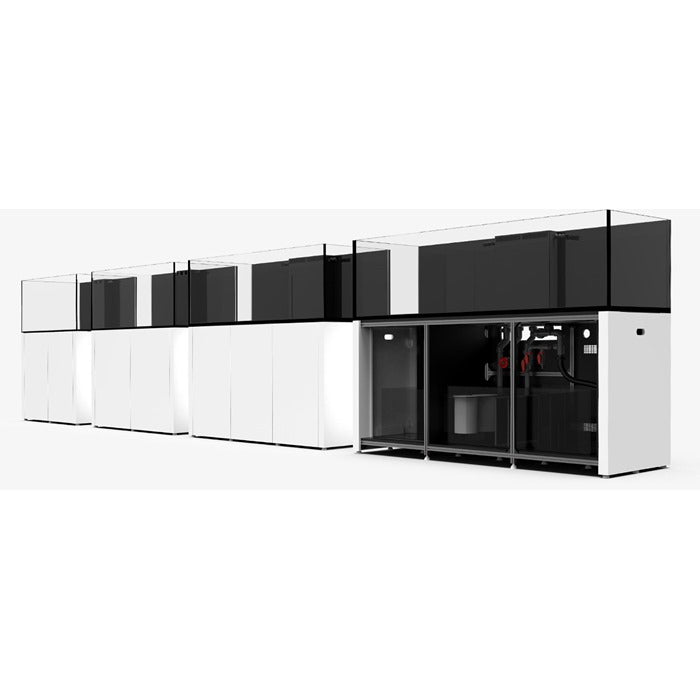

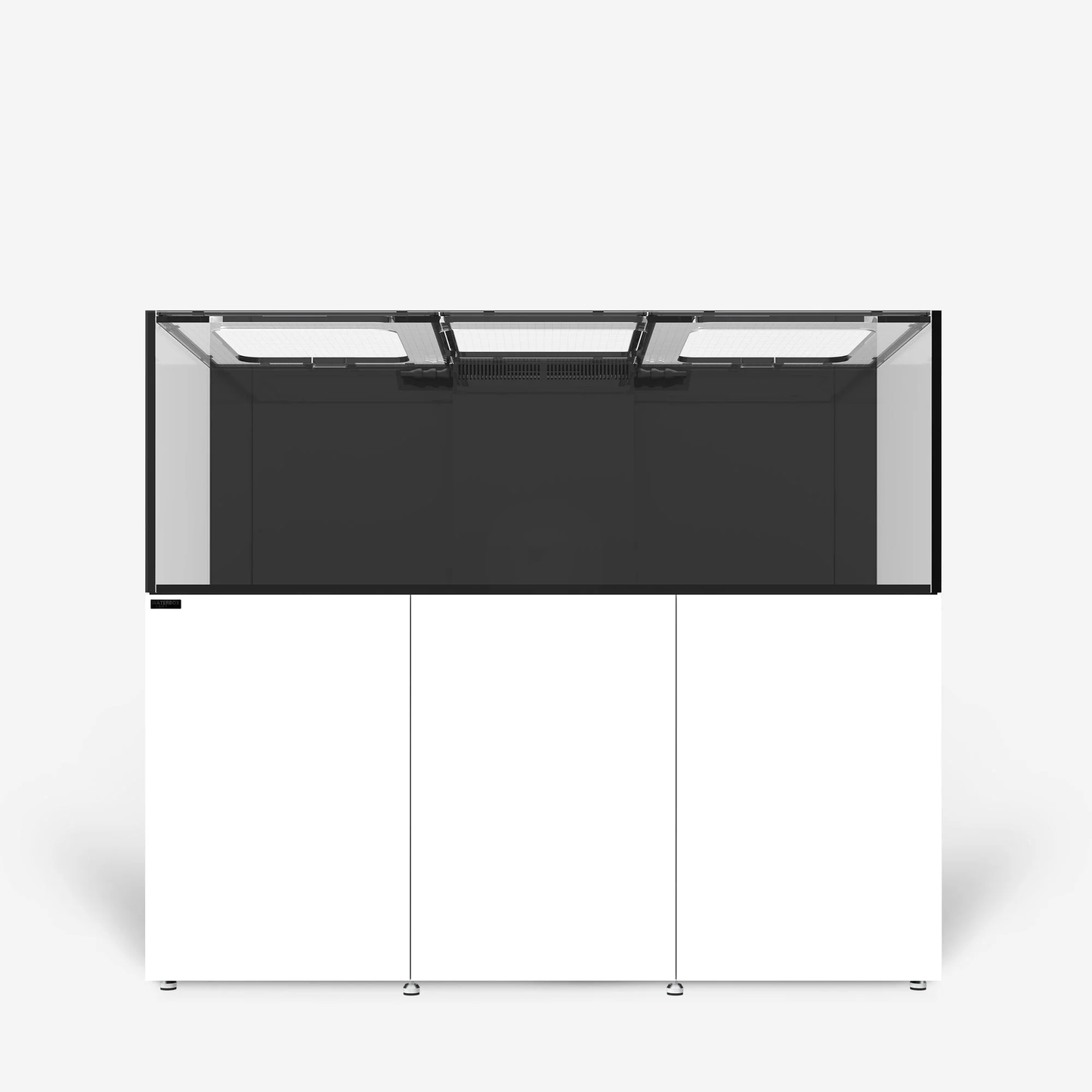

Waterbox Reef LX Gen2

Waterbox Reef LX Gen2

Regular price $6,149.00 SGD
Regular price Sale price $6,149.00 SGD
Sale Sold out
Size
Color

REEF LX

PRODUCT MODEL REEF LX 290.6 REEF LX 330.7 REEF LX 380.8
System Height with Cabinet 1,577mm/62.1" 1,577mm/62.1" 1,577mm/62.1"
Total Volume 1,091 L/288.3 gals 1,250 L/330.2 gals 1,450 L/383.1 gals
Display
Dimensions
(Length x Width x Height)
1,836 x 750 x 650mm 2,136 x 750 x 650mm 2,448 x 750 x 650mm
72.3" × 29.5" × 25.6" 84.1" × 29.5" × 25.6" 96.4" × 29.5" × 25.6"
Ultraclear Front & Sides 19mm (3/4") 19mm (3/4") 19mm (3/4")
Bottom Glass 19mm (3/4") 19mm (3/4") 19mm (3/4")
Euro-bracing Thickness 15mm (3/5″) 15mm (3/5″) 15mm (3/5″)
Aquarium Volume 808 L/213.4 gals 943 L/249 gals 1,083 L/286 gals
Glass Material Ultra-clear Low Iron glass (front, sides and euro-bracing)
Transmittance 91%
Sump Dimensions
(Length x Width x Height)
1,016 x 610 x 400mm 1,118 x 610 x 400mm 1,270 x 610 x 400mm
40" × 24" × 15.7" 44" × 24" × 15.7" 50" × 24" × 15.7"
Sump Volume 233 L/61.5 gals 257 L/67.8 gals 292 L/77.1 gals
Glass Thickness 8mm (5/16") 8mm (5/16") 8mm (5/16")
Refugium Chamber
(Max Dimensions)
250 x 518mm 300 x 518mm 350 x 518mm
9.8" × 20.4" 11.8" × 20.4" 13.8" × 20.4"
Refugium Chamber
(Min Dimensions)
200 x 518mm 230 x 518mm 250 x 518mm
7.9" × 20.4" 9.1" × 20.4" 9.8" × 20.4"
Skimmer Chamber
(Int. DIM, w/o Refugium)
547 x 518mm 649 x 518mm 801 x 518mm
21.5" × 20.4" 25.6" × 20.4" 31.5" × 20.4"
Skimmer Chamber
(Int. DIM, with Min Refugium)
342 x 518mm 414 x 518mm 546 x 518mm
13.5" × 20.4" 16.3" × 20.4" 21.5" × 20.4"
Skimmer Chamber
(Int. DIM, with Max Refugium)
292 x 518mm 344 x 518mm 446 x 518mm
11.5" × 20.4" 13.5" × 20.4" 17.6" × 20.4"
Pump Chamber
(Int. Dimensions)
180 x 518mm
7.1" × 20.4"
ATO ATO Dimensions
(Length x Width x Height)
305 x 475 x 380mm 350 x 610 x 380mm
12" × 18.7" × 15" 13.8" × 24" × 15"
ATO Volume 51 L/13.4 gals 76 L/20 gals
Glass Thickness 6mm (1/4") 6mm (1/4") 6mm (1/4")
Plumbing Main Drain 2 x DN25 (32mm/1-1/4")
Emergency Overflow DN32 (40mm/1-1/2")
Pump Return DN25 (32mm/1-1/4")
Nozzle(s) 2 x DN20
Filtration Filter Socks 2 x 180mm/7" MESH
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Cabinet Cabinet Model ALU 7230 ALU 8430 ALU 9630
Cabinet Dimensions 1,836 x 750 x 927mm 2,136 x 750 x 927mm 2,448 x 750 x 927mm
72.3" × 29.5" × 36.5" 84.1" × 29.5" × 36.5" 96.4" × 29.5" × 36.5"
Sump Compartment
(Int. Dimensions)
1,637 x 670 x 785mm 1,463 x 670 x 785mm 1,700 x 670 x 785mm
64.5"×26.4"×30.9" 57.6" × 25.7" × 32.8" 66.9" × 25.7" × 32.8"
Electrical Compartment
(Int. Dimensions)
430 x 91 x 746mm 430 x 91 x 746mm 430 x 91 x 746mm
17" × 3.6" × 29.4" 17" × 3.6" × 29.4" 17" × 3.6" × 29.4"
Aluminum Framework Heavy Duty Anti-corrosion Aluminum Alloy
Doors & Side Panels 18mm Plywood, Water-resistant PU coated
Bottom Panel 10mm PVC Board
Cabinet Color WHT-White, BLK-Black

* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
